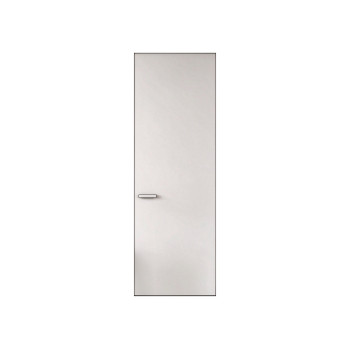

Metallic Micro-Inlay Haute Door

group name: Alu-Wood Doors

Min Order: 30 set

brand name: BLOSSOM CHEER Door And Window Project Manufacturer

Nearest port for product export: Guangzhou, Shenzhen

Delivery clauses under the trade mode: FOB, CIF, EXW, Express Delivery

Acceptable payment methods: T/T, L/C, Credit Card, Cash

update time: Mon, 26 Oct 2026 18:10:38 GMT

contact supplier

Paramtents

Product Type Aluminum-Wood Interior Door
Surface Process Seamless Flush Aluminum Alloy Micro-Inlay
Door Leaf Thickness 45mm
Aluminum Skeleton 2.0mm
Aluminum Edge Banding 2.0mm, One-Piece Construction
Core Options High-Density Aluminum Honeycomb / Graphite Sound-Insulation Board
Panel Options Multilayer Board / Carbon Crystal Board / Aluminum-Wood Composite
Sound Insulation Estimated Rw 30–32 dB with Hollow Double-Gasket Sealing
Hinges Concealed Hinges
Production Time 15-25 Days

Packging & Delivery

215cm x100cm x10cm
Min Order30 set

Briefing

Metallic micro-inlay aluminum-wood door with fine metal strips, a 2.0mm aluminum skeleton, magnetic locks and concealed hinges.

Detailed

45-degree cutaway of flush aluminum micro-inlay strips in a carbon-crystal panel, showing brushed anodized metal, an elevation drawing and the 2.0mm aluminum internal skeleton

Metallic Micro-Inlay Haute Door

Precision CNC grooving and seamless micro-inlay pair fine aluminum strips with woodgrain panels. A 2.0mm aluminum skeleton supports dimensional stability and a refined interior finish.

Metallic Micro-Inlay Haute Door Engineering Specifications

Process, construction, material and sizing specifications for the Metallic Micro-Inlay Haute Door, supporting project selection and fabrication planning.

Engineering Metric	Specification Value
Micro-Inlay Metal Process Features	Ultra-thin minimalist aluminum alloy inlay strips, seamless flush micro-inlay process
Door Leaf Composite Structure Thickness	45mm structural thickness (multilayer/carbon crystal/aluminum-wood composite)
Internal Main Load-bearing Aluminum Keel	2.0mm primary aluminum keel + 2.0mm one-piece aluminum edge banding
Door Core Internal Filling Material	High-porosity-ratio high-density aluminum honeycomb core / graphite homogeneous sound-insulation board filling
Standard Panel Fabrication Size	2250mm × 920mm (commonly used opening size in engineering)
Maximum Engineering-supported Size	2440mm × 1220mm (max fixed size for micro-inlay process)
Base Material Moisture Resistance & Weatherability	Withstands 100°C thermal cycling without cracking or delamination; moisture content 6–11%
Clear Opening Frame Sizing Formula	Clear width + 50 = frame height Leaf width + 34 = frame width Leaf height + 26 = frame height All formula dimensions are in millimeters.
Micro-Inlay Metal Strip Specifications	Metal strip width approx. 5–8mm, anodized finish
Comprehensive Acoustic Insulation Performance	Estimated R_w ≈ 30–32 dB (with hollow double-gasket sealing)

Magnetic Locks, Concealed Hinges & Multi-Brand Compatibility

Coordinate magnetic locks, concealed hinges and compatible lock bodies with the metal inlay finish of the Metallic Micro-Inlay Haute Door.

Micro-inlay aluminum-wood door with a matching magnetic lock, concealed hinges and compatible mechanical lock bodies

Inline magnetic silent lock and 7240 minimalist magnetic lock matching the door metal inlay strips

Project Applications & Door Configuration Options

Coordinate metal inlay patterns, woodgrain panels, aluminum frames and hardware for hotel executive suites, private club cigar lounges and minimalist residential entrance halls.

Metallic Micro-Inlay Haute Door Configurations

Micro-inlay aluminum-wood door in a hotel executive suite, private club cigar lounge or minimalist residential entrance hall

Hotel Suites, Private Clubs & Residential Entrance Configurations

Coordinate fine metal inlay lines, woodgrain finishes, magnetic locks and concealed hinges to suit each interior concept.

Project & Technical References

Micro-inlay aluminum-wood door project and technical references

Metallic Micro-Inlay Haute Door Project References

Explore References

Recommended Styles

Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.

Flush Aluminum-Wood Door with HPL Finish — HBD007 HBD007

Concealed Aluminum-Wood Door with HPL Finish BC2340

Flush Aluminum-Wood Door with HPL Finish HBD004

Available Colors & Finishes

All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
