Customization Door Size / Panel Finish / Hardware Series
Production Time 15-25 Days
Sample Available
Project Service OEM / ODM / Custom Project Support
Packging & Delivery
215cm x100cm x10cm
Min Order30 set
Briefing

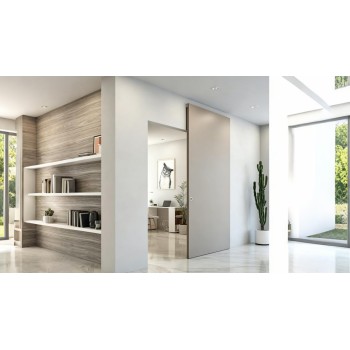

Custom Ghost Doors Combine Concealed Sliding Hardware With Space-Saving Operation And White, Grey, Or Wood-Grain Finishes For Modern Interior Projects.
Detailed
Ghost Door Hardware Specifications
Specification
Description
YB011st Generation
YB053rd Generation
YB094th Generation
Door Weight
≤ 80 kg per leaf
Door Width
800–1500 mm
Door Width Formula
Opening width + 267 mm
Opening width + 160 mm
Door Height Formula
Opening height + 70 mm
Required Headroom
120 mm
Door-to-Wall Gap
10 mm
Door Thickness
35–50 mm
Floor Guide Center to Wall
10 mm + door thickness ÷ 2
Product Features
Patent & Design
Patented and exclusively designed as China's first ghost door hardware system
Concealed Track
Fully concealed track design keeps the track and fittings out of sight
Overlap & Damper
—
Minimal overlap with a quick-release damper for easier maintenance
Anti-Derailment
Anti-derailment system helps prevent the sliding door from disengaging
Safety Latch
Safety latch
Dual-safety latch
Wall Compensation
Three-dimensional height adjustment compensates for uneven walls and helps prevent rubbing
Height-adjustable; does not compensate for rubbing caused by uneven walls
Floor Roller Finish
Transparent floor roller leaves no visible marks
Floor Adaptation
Elastic floor roller adapts to uneven floors and reduces sliding noise
Enlarged floor roller improves clearance
—
Spring Bracket
—
Two spring sets provide improved adaptation to uneven floors
Compatible Doors
Single wood, aluminium-framed glass, stainless-steel, and aluminium-wood doors; double-opening configurations are also available
Installation Site Requirements
Bracket Fixing Surface
The bracket fixing position must be on a solid structural wall
Timber Wall Reinforcement
For timber-framed or wood-finished walls, reinforce the bracket fixing area with a thickened structural board
Wall Flatness
The wall must be flat; otherwise, the door leaf may rub against it during opening or closing
Floor Condition
The floor must be level; installation over wood flooring or carpet is not supported
Door Grooving
Grooves in the door leaf must be machined accurately
Door Parking Space
At least one side of the opening must provide sufficient width and clearance to park the complete door leaf
Nearby Obstructions
Door casing, trim, or electrical switches beside the opening may restrict the door's opening travel
Main Component Materials
Main Bracket
Zinc Alloy
Precision-Cast 304 Stainless Steel
Powder-Coated Cold-Rolled Steel
Damper
Heavy-Duty Hydraulic Damper With Aluminium Profile Sleeve
Heavy-Duty Hydraulic Damper With 304 Stainless-Steel Base
Upper & Lower Tracks
Aluminium Alloy
Floor Guide Roller
Transparent Wear-Resistant Plastic Roller With Stainless-Steel Holder
Transparent Wear-Resistant Plastic Roller With Powder-Coated Cold-Rolled Steel Holder
Bearing
Bearing Steel
Accessory Packaging
Packing Quantity
5 Sets / Carton
Single-Set Package Size
128 × 18.2 × 5.5 cm
Carton Dimensions
128.5 × 32 × 20 cm
Weight Per Set
2.37 kg
2.33 kg
2.03 kg
Weight Per Carton
12.8 kg
12.6 kg
11.1 kg
Click any product image to enlarge it. Shared information is merged across all models. Model-specific differences are highlighted in orange. Swipe horizontally on mobile to compare the products.
Ghost Door Hardware Components
Components
The YB01 ghost door hardware set includes a main bracket, lower
guide wheel, damper, floor wheel, and side wheel.
Select a YB01 component
Components
The YB05 ghost door hardware set includes side covers, a main bracket, stop block,
lower guide wheel, left and right dampers, track, floor track, and floor wheels.
Select a YB05 component
Components
The YB09 ghost door hardware set includes side covers, a main bracket, damper,
track, lower guide wheel, floor track, and floor wheels.
Select a YB09 component
Main Bracket
Connects the door panel to the concealed sliding assembly, giving the carrier a fixed mounting point so the panel stays aligned as it moves.
Lower Guide Wheel
Guides the lower edge of the door and helps reduce side-to-side swing during daily sliding operation.
Damper
Slows the door near the end of travel, making opening or closing feel more controlled and quieter.
Floor Wheel
Provides lower rolling support so the panel can move smoothly while keeping the concealed system stable.
Side Wheel
Controls lateral contact near the side of the opening, helping the door stay steady without exposed guide hardware.
Left & Right Side Covers
Finish the exposed ends of the mechanism for a cleaner concealed installation and help shield the fittings from everyday contact.
Main Bracket
Secures the door panel to the YB05 sliding assembly, keeping the concealed carrier connection firm and aligned.
Stop Block
Defines the travel end position so the panel stops at the planned point before the hardware reaches its limit.
Lower Guide Wheel
Works with the lower guide path to keep the bottom of the door tracking straight and reduce twisting.
Left & Right Dampers
Provide soft control in both travel directions, slowing the panel as it reaches the open or closed end position.
Track
Forms the upper running path for the concealed sliding hardware, helping the moving parts stay straight and coordinated.
Floor Track
Creates a fixed lower guide path for the floor wheels, reducing sway and keeping the panel moving in line.
Floor Wheels
Run along the lower track to support smooth movement and help the door maintain a stable sliding path.
Left & Right Side Covers
Conceal the side ends of the YB09 hardware set, giving the installation a cleaner finished edge.
Main Bracket
Fastens the door panel to the YB09 carrier assembly, supporting stable movement within the hidden hardware layout.
Damper
Absorbs the final motion of the sliding panel, helping the door close or open with less impact and noise.
Track
Provides the straight upper guide path for the YB09 sliding mechanism while remaining hidden in the finished installation.
Lower Guide Wheel
Controls the lower guide point so the door panel stays aligned and resists lateral movement while sliding.
Floor Track
Keeps the bottom guide route fixed, helping the floor wheels run consistently without drifting from the sliding path.
Floor Wheels
Support smooth lower movement along the floor track and help stabilize the door through repeated daily use.
Paint-Free Ghost Door | Micro Inlay Wood Door Series
What is a paint-free ghost door? It is a concealed sliding interior wood door that hides its track, rollers, and
guides to create a clean floating appearance. This micro inlay series combines paint-free wood door panels with
CNC-milled decorative strips for apartments, hotels, villas, and custom residential or commercial projects.
Ghost Door Features
Paint-Free Ghost Door with Micro Inlay Wood Panel
A paint-free ghost door conceals the sliding track, rollers, and guide while its micro inlay wood panel delivers
refined line detail, a flush appearance, and a clean modern finish for custom interior projects.
This gallery shows paint-free ghost door panels developed for concealed sliding door hardware. CNC groove
milling, preformed decorative strips, interference-fit positioning, and adhesive-assisted fixation create
clean line details while the hidden track system supports a floating, flush-to-wall appearance. Custom sizes,
finishes, and hardware matching are available for residential, hospitality, and commercial door projects.
Ghost Door Glass Color Customization
Choose the glass color, transparency, privacy level, surface effect, and coordination with
concealed sliding hardware for custom ghost door projects.
Glass color affects daylight, privacy, reflection, and the visual depth of a ghost door. Review the selected
glass together with the frame finish, panel size, door-leaf weight, and YB01, YB05, or YB09 concealed
hardware set before production.
Clear Glass
In StockEuropean Grey
Grey Tea Glass
Gold Tea Glass
Black Glass
Review Focus
